Further Adventures In DIY Boat Maintenance

Exactly a month ago I wrote about removing the old, frozen outboard motor bracket from the boat…  https://onemoregoodadventure.com/2019/10/01/the-cruising-life/. As of yesterday the new bracket is now sitting jauntily on the transom. It wasn’t easy!

You have to know a bit about me to understand how difficult the job was. I’m 77 years old. I operate on lungs with a bit less than 40% of capacity due to COPD. I have three arterial stents and my fingers are gnarled from arthritis. I live full time on a Venture22 sailboat anchored off of Coquina Beach, Anna Maria Island, Florida, a bit south of Tampa Bay. Most of my adult life I made my living on the water either operating boats or repairing the damned things.

I tried to install it a week or so earlier but couldn’t do it. I I thought if I could get one or two of the 5/16″ bolts through the holes it might hold up well enough until I could climb down under the port seat in the cockpit to get the nuts on. And I’m trying to do this in a dinghy! The damned thing is heavy at 20 lbs and wakes coming in from the nearby Intracoastal Waterway had me bouncing up and down. Kersploosh! One of the bolts drops off into Davy Jones’s locker. Certainly a pain, but from years in the business, even though there are only four holes to be filled I bought FIVE bolts.

This wasn’t going to work so I gave up for the time being. I made a couple of calls to guys I know who are anchored up above but got no reply. So I’m thinking over the next couple of days, “What would I do if I was off on some deserted island by myself? How would I be able to cope and get the job done?

I pondered for a couple of days and then it hit me. I’d been going at it from the wrong direction! If I had a bolt sticking OUT of the transom it should be easier to get one of the holes to slip over IT than to try and get a bolt to slip into what is a small, moving hole. In my container of assorted odds and ends I found a 3” long bolt and nut and a couple of fender washers. The strange thing I notice as I’m digging through the stuff is that I’ve got a good assortment of bolts but, oddly, very few nuts to fit anything.

So, I have to climb down under the portside cockpit seat and it’s not easy. For the benefit of those who didn’t read the previous post this is the challenge…

IMG_0116

IMG_0118

Best case scenario is that I’ll only have to do this three times. Did I tell you I still believe in Santa Clause and the Easter Bunny?

I toss the bolt back to the transom and dive into the hole head first and inchworm my way aft. Though it’s a bare 7 feet, a half century of inhaling the smoke of licit and illicit substances has taken its toll and I have to pause a couple of minutes until my breath returns to normal. Or a reasonable facsimile of normal, anyway. Struggle my way out of the hole, into the cabin and up into the cockpit where I have to rest up for a few minutes.

I then wrestled the 20 pound  bracket down into the dinghy and, hand over hand, pulled my way to the stern. I tied the bow and stern of the dinghy off to keep from moving around as much as possible and then tied a length of paracord to the bracket and secured it to the stern railing so that if I lost my grip on the thing it wouldn’t fall into the water.

I lift the bracket up to set it on the protruding bolt and it nearly slides back into the hole. I forgot to secure it with duct tape as I’d planned.

Unfasten the bracket. Back around to the side of the boat and up into the cockpit. Down into the cabin where I rest for a couple of minutes before plunging into the hole again. A couple of pieces of tape over the head of the bolt only take a couple of seconds. That done, it’s inch my way topside again and tie up astern once more. Resecure the bracket to the stern railing and lift the bracket up onto the bolt. Holding it in place with one hand I slide a fender washer over the bolt and finger tighten the nut to hold the bracket steady while I put the bolts into the upper and lower outboard holes of the bracket. The holes aren’t exactly lined up but a couple of light taps with the small hammer I’ve brought along takes care of that, and the bolts are head-deep in the holes.

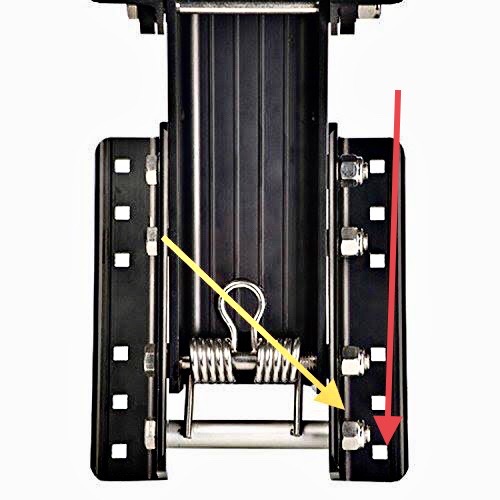

The problem comes with the inboard bottom hole. The way the thing is built the bolt (yellow arrow) protrudes too far to allow the head of the bolt to pass by and enter the pre-drilled hole (red arrow).

IMG_0171

Back into the boat cabin and dig out the cordless drill and a bit that will fit through the hole. I’ll drill all the way through the transom from the outside in the hole just above the intended one. It will be a pilot hole. Then, when I’m inside the hole again, with the proper sized bit, because that one won’t fit through the bracket hole, I’ll enlarge the hole until the bit bottoms out on the metal of the bracket.

Now I’m back in the hole for the THIRD TIME. Tighten the two lock tight bolts after fitting aluminum backing plates over the bolts and enlarge the new hole. I remove the tape from the pilot bolt and use some two-part epoxy stick putty to fill the hole that’s useless.

Outside and tied up to the transom again I remove the pilot bolt and put the new bolts into the holes. Back around to the side of the boat. Up into the cockpit. Down into the cabin. Squeeze into the hole. Inchworm my way to the transom and tighten the two final bolts.

DONE!! It looks cool back there. Today I just gave the go ahead to Cannon Marine down in nearby Longboat Key to order me a Yamaha 6 horsepower, long shaft, four stroke outboard. The price is nearly $300 less than a similar model Mercury outboard from West Marine or Bradenton Beach Marine. Monday I’ll know when it will be delivered. It has to be ordered from Yamaha as it’s not in stock but will be coming in with some other, larger engines they’re going to be ordering. When I get it I plan on doing a bit of cruising around the area. Up into the Manatee that goes through Bradenton and into Sarasota and the Hillsborough River that flows through downtown Tampa. I want to go up there and check out the Jean Street Boat Yard. It’s the only one close by (40 miles away) that will let you work on your boat yourself. I need to paint the bottom to fend off the barnacles and other flora and fauna that grow on it in these warm, shallow waters. An interesting side bar to the Jean Street yard is that it’s the oldest boat yard in the entire state of Florida, opening its doors for business in 1848!!!





Comments Off on Further Adventures In DIY Boat Maintenance

Filed under Boat Repair, boats, cruising, Living on the hook, Minimalist Cruising, Outboard Motors, sailboats, Small boat cruising, Uncategorized

More of the Cruising Life

One nice thing about being retired is that there’s no big rush to get things accomplished ASAP. I’m under no deadlines as far as working on my boat, especially since no one’s paying me to do it.

I’ve needed to scrape the bottom of my dinghy for a while. When was the last time you went out and scraped junk off of the bottom of your car or pickup truck? All last week I watched a piece of seaweed that can best be described as looking like a leaf of very ripe lettuce grow larger and larger. Really nothing I could do about it then. There’s a tiny, postage-stamp bit of beach on the south side of the boat launch ramp, but it’s only usable at low tide, and the tides weren’t synced right last week. But today it was dead low at 0830 so I went in around 10 on a rising tide. There was enough of the “beach” left to put the things I keep in the dinghy, shopping cart, life jacket and throwable flotation required by the USCG, spare paddle, etc. on shore.Flipped it upside down and went to work with the scraper. For most people reading this it wouldn’t have taken you more than about 15 or 20 minutes to get the wildlife (barnacles) and vegetables off the bottom, but I’m working with about 40% lung capacity so several breaks to catch my breath extended the job to about an hour. It’s amazing how much easier it paddles with all that stuff gone.

As I wrote, recently, I need to replace the original outboard motor bracket that came with the boat. The last year with the old Honda 9.9 at more than 100 lbs rocking and rolling in the passing wakes bent the arms of the bracket so I couldn’t raise or lower it. I’d always had a problem with it and had resorted to a block and tackle arrangement to use it. Even then it was extremely difficult.

I described how I got the jackplate (as the brackets are sometimes called) off the transom, elsewhere. Of course the bolt holes of the new bracket aren’t the same as the old one. So last week I bought some epoxy stick. Break a bit off the stick and knead it until the color from the two parts blend into a solid color and then stuffed it into the old holes.

This afternoon I climbed into the dinghy with the bracket to which I’d attached some rope to tie to the stern railing to keep it from taking a swim.

The first hole was easy. I moved the bracket around until it looked good. . .i.e. there was enough room to operated the lift arm properly. . . and made sure it was about an inch away from one of the original holes and went at it with the 11/32 drill bitt. Of course it needs to be a bit bigger than the 5/16″ bolt so it can slide through the hole in the transom easily.

With that hole drilled I slipped one of the 5/16 bolts through to help hold the bracket in place so I could determine where the next three holes needed to be drilled. Using a smaller bitt I drilled into the center of the holes and then removed the bracket completely off the transom. Back to the 11/32 bitt I used the smaller holes as guides and drilled completely through the transom.

t was the middle of the afternoon when I finished this up and I didn’t feel like moving all the detritus necessary to climb into that 16-1/2″ entrance to where I’ll be accessing the bolts to tighten things up. I’ll get that done sometime in the next few days. No hurry.

Comments Off on More of the Cruising Life

Filed under adventure, Boat Repair, boats, Bradenton Beach, FL, cruising, Living off the grid, Living on the hook, Minimalist Cruising, Outboard Motors, Uncategorized

The Cruising Life

Some wag once said, “The cruising life is repairing your boat with inadequate tools in exotic locations.” The fact that I have only “cruised” about a third of a mile in the last six months does NOT negate that statement.

I’ve been struggling to remove the original outboard motor bracket on the port side of the transom. The boat had a 25hp Yamaha when I bought it. Much too big and heavy for such a small, light boat as a Venture 22.  It as a lousy engine, too boot. Broke down THREE TIMES between Ft. Lauderdale and Stuart. First time was in Boca Raton, about 20 miles from the start of my venture. It broke down again another 20 miles or so up in West Palm and finally in Stuart. If you searched for the term “hunk of junk” in the dictionary there’d be a picture of that outboard.

I replaced it with an old model 9.9 Mercury outboard. It took me from Stuart, across the state via the Okeechobee Waterway up to Carabelle in the eastern panhandle, and back down to Bradenton Beach where I live at anchor. Last year it took me from here to Cayo Costa and back, a journey of nearly 200 miles. The engine has worked like a charm for close to 2,000 miles. Its single shortcoming is that it’s a “short shaft” outboard and the prop cavitates when I’m rocked with the wakes of other boats and I really can’t use it when the seas are over 2 feet.

To work properly as auxiliary power for these small sailboats the outboards really need to be “long shaft.” Twenty inches, minimum, from where the engine attaches to the motor bracket to the cavitation plate rather than the 15 inches on the “short shaft” outboards. Five inches doesn’t seem like a lot. In fact, most women would scoff at that, but it makes a huge difference with an outboard motor.

A little over a year ago I bought a second-hand Honda 9.9 long shaft 4 stroke outboard. I had another bracket, sometimes called a “jack stand” that I attached to the starboard side of the transom, and moved the Mercury to it, and put the Honda on the original bracket.

I just never got the Honda working right. Problem with the idle speed. Since the Merc worked fine I never did what needed to be done to get the Honda working properly. So it sat on the stand for over a year. The bracket was never very good, either. I had to rig it with a block and tackle so I could raise and lower it when the Merc was on it. Over the year as the sailboat rocked and rolled in the wakes of passing boats and waves from storms the engine swayed back and forth on the stand. Sometimes worryingly so. Nothing I did with ropes got it to stay stationary.

I’ve been thinking about getting a BRAND NEW four stroke, long shaft motor for a long time. Actually since from about the time I bought the boat in the first place. But I needed to get rid of the Honda so I’d have a place to put a new motor. I DON’T want a used one. I want something BRAND NEW! I want something that if it poops I can take it in, after using the Merc to get me to the repair shop, and say, “Fix it! It’s on warranty!!!”

Well, I sold the Honda a couple of weeks ago for almost as much as I paid for it. Damned thing was HEAVY. When it came off the bracket the rear end of the boat rose  a bit over two inches! I know, because the barnacles grow just at the waterline and there were over two inches of the buggers above the waterline with the engine gone.

Then I found that the bracket was frozen. The arms are slightly bent from the side to side action of the motor riding the waves. It’s impossible to raise or lower it. I bought a big breaker bar to try and get the bolts loosened up but no go. So the thing to do was to remove the bracket from the boat and see if I can straighten it out on shore. Easier said than done…

Heaven only knows how old the bracket is. Could be as old as the boat which was built in 1980! It’s attached to the transom by four bolts. Now, since I’m doing this unassisted, I have to slither through a small opening into the space beneath the cockpit seat to get to where the nuts are.

Once through that the space opens up a bit, but not a whole lot. Not enough to be able to sit up, so everything is done lying on my stomach. Here you can see where three of the bolts have been removed.

I got plenty of practice doing this sort of thing working as a rigger at a boatyard in New Orleans. But I’m 36 years older now, have arthritic hands, and less than 40% of normal lung capacity.

If everything goes well, HA! You work your way aft with your wrenches and take the bolt off. Easy Peasy, no? NO! These are lock-tight nuts. They have a plastic insert in the hole so they can’t vibrate loose.

I get the two lower bolts off easy enough. The top, inside nut is on an extra long bolt and the ratchet socket won’t fit over it. Of course I’m not prepared for this. I don’t have a box wrench or pliers with me . The top outside nut turns the bolt so it’s not coming loose.

Here’s why this is happening. Take a look at this more modern bracket.

See how the holes are square? They take bolts like these…

The square shoulders fit down into the squares on the bracket holes. This makes it easy to then go on the nut side of the bolt and fasten the nut without having someone on the outside holding it with a wrench to keep it from turning like happens with THESE…





Now I have to slither BACKWARDS out into the cabin to work out my next plan of attack. And don’t forget, I have serious COPD problems. I’m operating on about 40% of normal lung capacity so after doing something like getting out of the hole I have to sit for five minutes until my breathing gets back to what passes for normal.

I delve into my tool locker and dig out a pair of Vice Grips and my channel lock pliers. I don’t have a box wrench the proper size.  Over the side, into the dinghy and around to the bracket. I need to attach the Vice Grips to the bolt head. As the bolt is going to turn when I work on the nut, inside, the plier’s handle will also rotate until it comes to rest against one of the arms  keeping the bolt from turning further. OOOOPS. I know from experience that there’s a good chance the pliers might come loose. If that happens they’d fall into the water and be lost. So it’s back around to the side of the boat, up into the cockpit. Rest and catch my breath. Now, where the hell is that ball of twine? I’m not a super organized guy so it takes a while to find it. Back over the side into the dinghy. Around to the bracket. Hold on for a few minutes till my breathing is relaxed again.

After tying the twine to the pliers and securing it to a cleat,  I tighten the pliers onto the bolt head using both hands to lock them on. Back around to the side and up into the cockpit. Sit to catch my breath. Slither into the 16 inch hole and up to the transom. Rest to catch my breath. Use the channel locks to unfasten the nut. When it’s off I take the small hammer and whack away until the bolt end is flush with the transom. That sucker’s really in there. Rest for a few minutes to catch my breath. Agonizingly back out of the pit. Rest. Over the side into the dinghy and back to the bracket. pull the bolt the rest of the way out of the hole and reattach it to the remaining bolt head. Around to the side of the boat. Climb into the cockpit. Rest to catch my breath. Into the hole and work my way to the transom in a motion resembling an inch worm. Rest to catch my breath. Using the channel locks the nut starts working itself off the bolt. CLUNK! The Vice Grips have fallen off the bolt head. SHIT! F WORD! F WORD! F WORD!!!

Out of the hole. Rest. Into the dinghy and back to the bracket. See, I needed that twine. An eighth of a turn on the knob at the base of the pliers and a mighty squeeze with both hands gets them back on the bolt head. Around to the side of the boat, back in the cockpit. Rest. Back into the hole and inch worm my way to the transom. Rest. This time all’s good and the nut’s off. Back out of the hole. Rest. Over the side. Into the dinghy. Back to the bracket. Pull the bolt from the hole. Back to the side of the boat and into the cockpit. Rest. That part of the job is done.

Now I have to pry the bracket off of the transom. It’s stuck on, now, with silicone. Thank heaven it’s not done with 5200 which is the most tenacious adhesive sealant ever created. Silicone has the least adhesive properties of all the sealants, but there’s no telling how much was used when the bracket was attached. In any case, it won’t be easy getting it off. Since the holes on the old bracket are simply round, and not square like the new ones I’m not going to reuse it. I’ll buy a new bracket.

I’ve found a nearby marina down in Longboat Key has four stroke, 6 hp long shafts for sale for $1,650. That’s $200 less than the equivalent Mercury or Suzuki which will cover the cost of a new bracket. And, they’ll bring it up to me. They have to order it first, so it will take a while. Meanwhile I’ll work on removing the old bracket, order and install a new one.

WHEW!



1 Comment

Filed under adventure, Boat Repair, cruising, Living Abroad, Living on the hook, Living Small, Minimalist Cruising, Outboard Motors, sailboats, sailing, Small boat cruising, Uncategorized

Dinghy Repairs

When I bought my boat nearly two years ago and took off on my ill-fated journey that ended up at Tallahassee Memorial Hospital I had no dinghy.A dinghy didn’t become essential until I got to Bradenton Beach, FL, anchorage. Then I bought a cockleshell piece of junk for $150. It’s ugly as sin, needs to have gunwales installed and a bunch of other things, but all in all it has served me well.

One of the problems the dinghy had was what serves as a seat in the bow was separating from the hull on the port side. It has bugged me for ages but I just let it go. A month or so ago when I went out to buy some new shoes I found myself not too far from West Marine so I went there and bought some Six10 thickened epoxy adhesive.

I’m a big fan of thickened epoxy. When my friend Stephen and I had a marine repair business in Fort Lauderdale decades ago we used a LOT of the stuff in rebuilding things like sport fishing boat cockpit decks. Stef had the West System Epoxy pump system that automatically mixed the proper 5:1 blend with the push of a lever. Add colloidal silica or micro fibers and go to town with the stuff. But buying the individual chemicals and glop to do a small job was not worth spending the money…epoxy, hardener, thickener. I’d seen the Six10 in the West online catalog and it was an all-in-one tube you use with a caulking gun. I sprung for the $26 and bought some and an extra couple of nozzles because the job of repairing the dinghy wasn’t going to use all of it.

Those nozzles are pretty ingenious. As you look at one it has lots of little chambers along the way. The tube is divided into two parts: epoxy and hardener. They get mixed as the goo is squeezed out of the tube. The chambers (19 of them) shift the resin and the hardener from one side to the other to combine the two.

As you can see it’s a pretty big gap that needs to be filled. A quarter of an inch, at least. Because of the location how do I get the seat and the side of the boat to hold together close enough while the epoxy is hardening…Five hours according to the instructions on the tube? Obviously I don’t have clamps big enough to do the job.

The solution was pretty easy. I had a bunch of #8 machine screws, nuts, and flat washers. I drilled through the seat flange and the hull and then stuck the bolt through.Squirted the epoxy down into the gap and tightened the nut and bolt until the epoxy started to be squeezed out. Tightened JUST ENOUGH for the stuff to be compressed and stopped. There’s still a good-size gap, but the integrity of the hull will be strengthened when the epoxy “kicks off.”

One of the biggest errors amateurs make when using caulking or, in this case gap-filling, is that people put a nice, thick layer of caulking around something and then they tighten the screws, or bolts, down till they’re completely tightened thus squeezing 99.8% of the caulk out and leaving a paper thin layer of goop. Then they wonder why it still leaks. You need to put that caulk down and tighten it up JUST ENOUGH to have the caulking ooze out around the lip of whatever’s being bedded and then STOP!!! Let is sit for a couple or three days until it’s cured THEN go back and tighten the screws or bolts as tight as they’ll go. You’ve created a gasket now and it WON’T leak.

gap

bolts

epoxy
